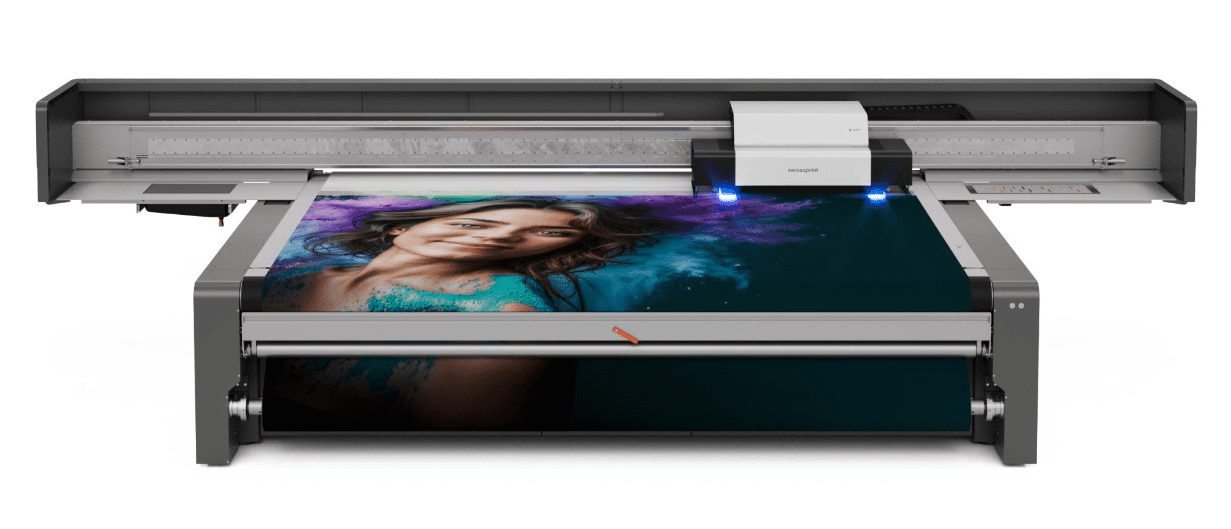

The swissQprint Nyala 5 is a flatbed printer designed for high-volume, high-precision large format printing. It combines a generous maximum print area with versatile media handling, offering productivity for a range of applications. As a UV LED printer, the Nyala 5 supports a broad spectrum of substrates, including rigid and flexible media, thanks to its hybrid design and optional roll-to-roll system.
With a maximum print area of 3.2 × 2 metres and an object height clearance of up to 50 mm, this printer is suited for both standard signage and more specialised applications. It offers multiple ink configurations, including CMYK and light colours, alongside options for white, varnish, and other special inks to enhance output versatility. The Nyala 5 features scalable printhead configurations, accommodating up to 18 printheads, and supports resolution up to 1350 dpi.
Production speed varies by configuration, with a maximum output of up to 206 square metres per hour, making it appropriate for industrial-scale production. swissQprint’s ink system uses UV-curable inks delivered via a bulk ink system and cured with LED lamps. The machine includes swissQprint’s own RIP software, outputting high-quality results across a range of media types.
Typical applications include signage, exhibition graphics, retail displays, decorative panels, and more. Its flatbed design and robust build are aimed at demanding print environments requiring reliability and media versatility. The printer was launched in 2023 and comes with a standard warranty period of 2 years.
