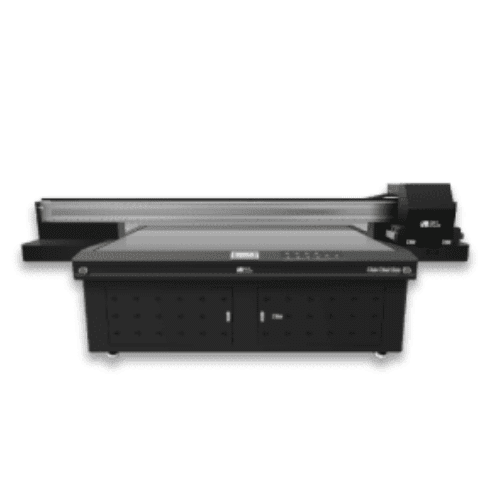

The Sinocolor UV Flatbed Printer FB-2513s is a large-format printing machine with a bed size of 2500 mm x 1300 mm, designed for high-volume and diverse printing applications. It features a robust design with a precision fixed bed and dual guide rails for stable carriage movement. The printer is equipped with a variable number of Epson i3200-U printheads, with options ranging from two to eight, and can achieve a maximum print resolution of up to 2400 DPI. The machine’s production speed is up to 50 sqm/h, making it a suitable choice for commercial environments where both speed and high-quality output are required.
The FB-2513s utilises UV-LED curable inks and supports multiple colour configurations, including CMYK, CMYK + White, and CMYK + White + Varnish. It also has a full white ink recirculation system to prevent pigment settling and ensure consistent printing. The printer includes a dual negative pressure system for a stable ink flow and a four-zone vacuum platform for powerful media suction. The maximum media thickness is 120 mm, with optional upgrades to 200 mm or 400 mm. An anti-collision system protects the printheads, and a system for automatic media height detection simplifies operation. The printer is compatible with a wide array of materials such as glass, acrylic, wood, and metal, making it a versatile tool for a variety of printing tasks, from decorative panels to general signage.
