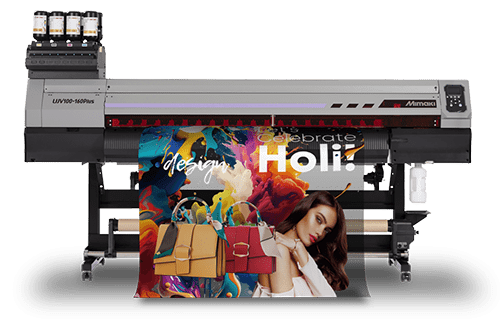

The Mimaki UJV100-160Plus is a roll-to-roll LED-UV printer designed for versatility and low running costs. With a maximum print width of 1610mm, it is engineered for a wide range of applications on both coated and uncoated media. The printer features two staggered on-demand piezo printheads, capable of achieving a high print resolution of up to 1200 dpi. Its key advantage is the use of UV-LED ink, which cures instantly, eliminating drying time and allowing for immediate lamination or installation, thereby improving productivity.
The Mimaki UJV100-160Plus uses Mimaki’s LUS-190 ink, which is GREENGUARD Gold certified and available in various configurations, including CMYK, White, and Clear. The clear ink option allows for textured effects and 3-layer printing for applications like backlit and window signage. The printer has a maximum power consumption of 0.5 kW, making it more energy-efficient than eco-solvent and latex printers. It includes several core technologies for stable and high-quality printing, such as the Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) for continuous operation, and the Dot Adjustment System (DAS) for automatic dot position and feed adjustments. The printer comes with RasterLink7 RIP software, which features an ink-saving function that can reduce consumption by up to 50% while maintaining colour balance.
