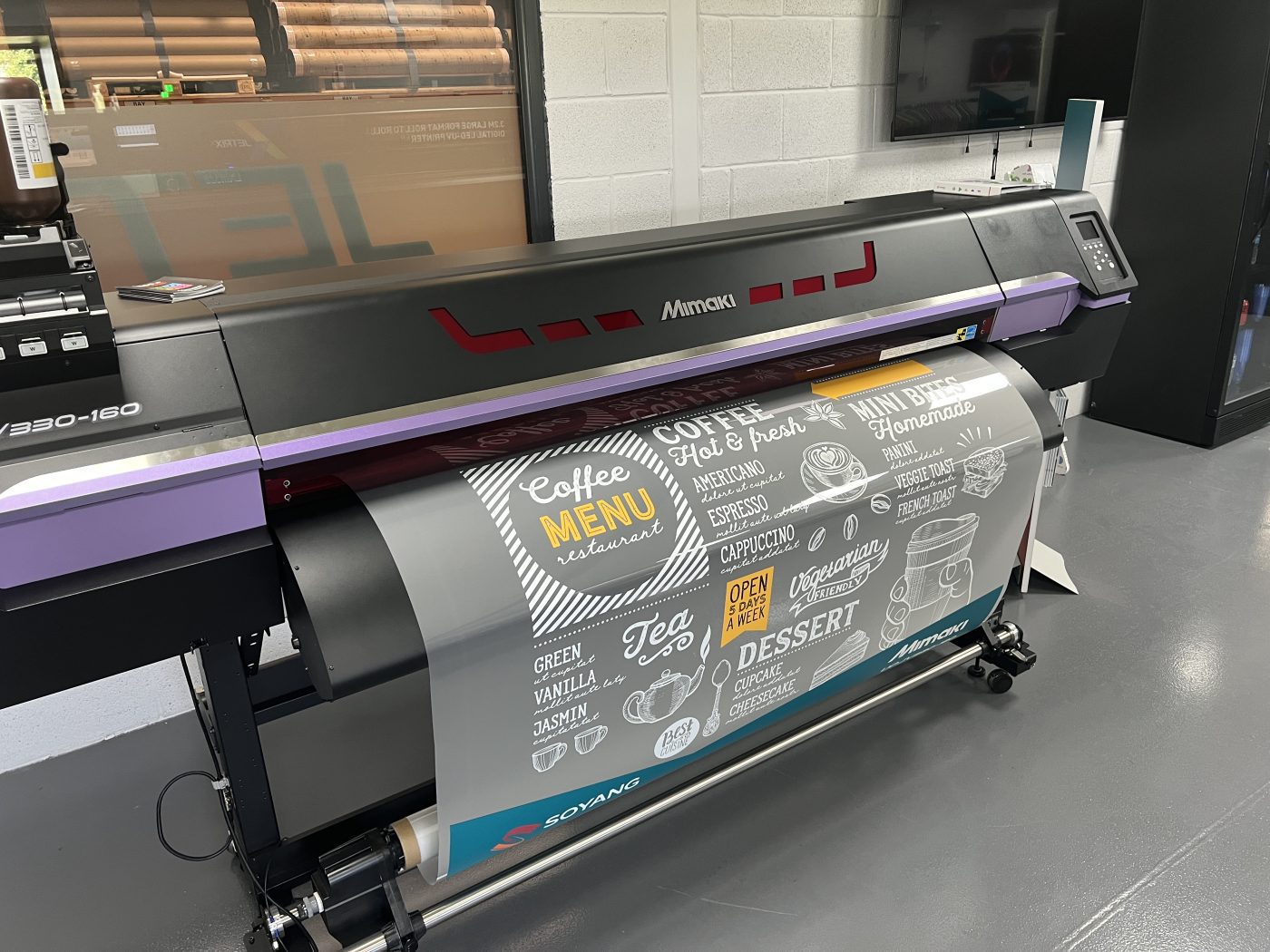

The Mimaki UCJV330-160 is a roll-to-roll UV-LED large format printer designed for sign graphics and display production. It supports both print and cut functionality and is aimed at businesses requiring high-performance output with a variety of media types. This model prints with UV-curable inks, enabling instant curing and fast turnaround, making it suitable for time-sensitive jobs.
The UCJV330-160 supports a maximum print width of 1,610 mm and delivers resolutions up to 1,200 dpi. It uses Mimaki’s UV ink technology, with available configurations including CMYK plus White and Clear inks. Its integrated LED curing system supports quick drying times without the need for off-gassing, allowing for immediate finishing and installation.
Featuring up to two printheads, the printer utilises piezoelectric printhead technology and supports Mimaki’s flexible UV inks. It includes advanced media handling options such as take-up and feeding units and can print on a range of substrates including PVC, PET, banner materials, and films. The maximum media thickness supported is 1.0 mm.
This model includes Mimaki’s RasterLink7 RIP software, offering file handling, colour control, and job layout features. Applications span across indoor and outdoor signage, point-of-sale displays, window graphics, and vehicle wraps. It also supports five-layer printing, including colour-white-colour for backlit graphics. With the addition of clear ink, users can also produce textured or glossy visual effects.
