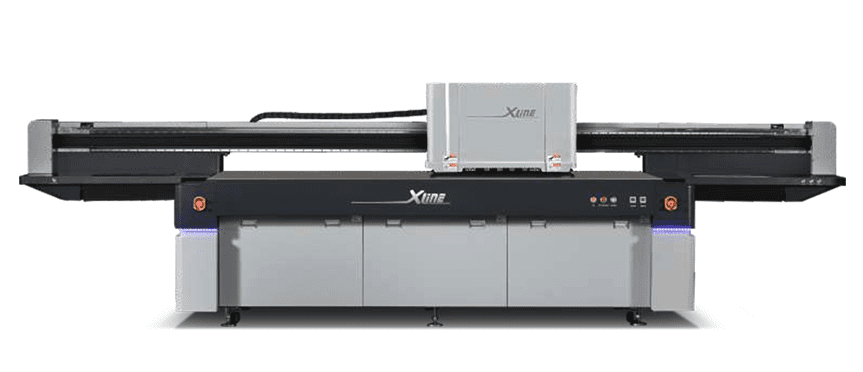

The Liyu XLINE FLATBED UV is an industrial-grade flatbed printer built for versatile printing across rigid materials. Featuring LED UV curing and a high-performance vacuum system, it securely holds diverse substrates—such as glass, wood, metal and plastic—during printing.
The printer supports resolutions up to 2400 dpi with a droplet size of 5 picoliters, offering detailed image reproduction and fine tonal transitions. It employs Ricoh GEN6 printheads, with capacity for up to 16 heads, enabling scalable production and enhanced throughput. Two flatbed sizes are offered: 2500 × 1250 mm and 3050 × 2050 mm, accommodating varied print dimensions and media formats. Maximum media thickness is 100 mm, enabling printing on substrates of substantial depth.
The machine is powered by standard 230 V (±10 %), 40 A electrical supply, compatible with 50 Hz or 60 Hz systems. Machine weight ranges between 1 370 kg and 2 500 kg, depending on model and configuration. An optional RIP, Photo-Print by Caldera, is available to support job management and colour workflows. Print speeds reach up to 90 m²/h, making it suitable for high-volume production environments.
The system’s robust build and technical capabilities make it suitable for industries such as advertising, furniture decoration, and glass decoration, offering precision, adaptability, and industrial reliability
