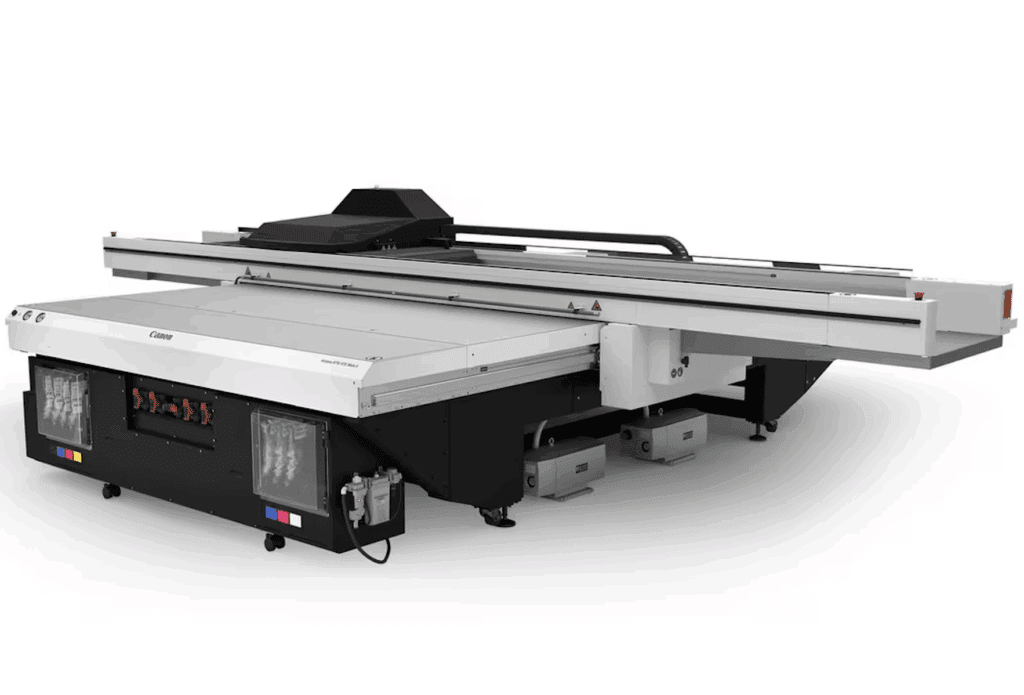

Canon Arizona 6100 Mark II Series

High-volume flatbed large format printer with VariaDot technology and white.

The Canon Arizona 6100 Mark II Series is a collection of true flatbed large-format printers designed for high-volume rigid media output. Using third-generation VariaDot imaging technology, these machines offer variable droplet sizes for detailed graphics and solids alike. There are four main model variants: two without white ink (six-colour configuration) and two with white ink (seven-colour configuration, including white), each further differentiated by the type of flatbed table (XTS or XTHF) which affects media handling, vacuum system, registration and substrate thickness.

The system supports rigid sheet and object printing with edge-to-edge (full bleed) output up to approximately 2,510 × 3,090 mm or, for some versions, up to 2,510 × 3,210 mm. Media thickness limits depend on table type: some models allow up to roughly 50 mm thickness; others less (e.g. 25 mm for the XTHF variant) when handling large or difficult substrates. Printing is carried out using piezoelectric inkjet heads: six 636-nozzle variable droplet printheads per channel, six channels (36 heads) in six-colour models; seven channels (42 heads) when white ink is included.

The system includes high-pressure or regenerative blower vacuum systems depending on porous or non-porous media. Typical production output reaches up to 220 m² per hour depending on configuration. The printer includes an automated maintenance system for printhead cleaning. Substrate registration is achieved via pin registration systems. The machines are suited to a wide range of rigid and flexible media including glass, metals, wood, MDF, canvas and plastics. They are used for signage, display graphics, exhibition prints, rigid advertising and other applications requiring durable, high-quality flatbed printing.

Product Specification

Ink Type:UV Curable
Form Factor: Flatbed
Max Print Width / Area: 2,510 × 3,090 mm
Ink Configuration: Six colour (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta); or seven-colour (same plus White)
Curing System: UV curing
Max Resolution (DPI): 1,440 dpi
Number of heads max: 42
Printhead Technology: VariaDot with variable drop size
Production speed (sqm/h): 220
Max Object Thickness (mm): 50mm
Maximum speed (sqm/h): 220
Roll width (mm): <1000
Bed size (mm): 2510 x 3090
Warranty years: not specified
RIP software included: PRISMAguide XL
RRP from £: POA
Ink Delivery system: Bags
Speciality inks: Light Cyan, Light Magenta, White
